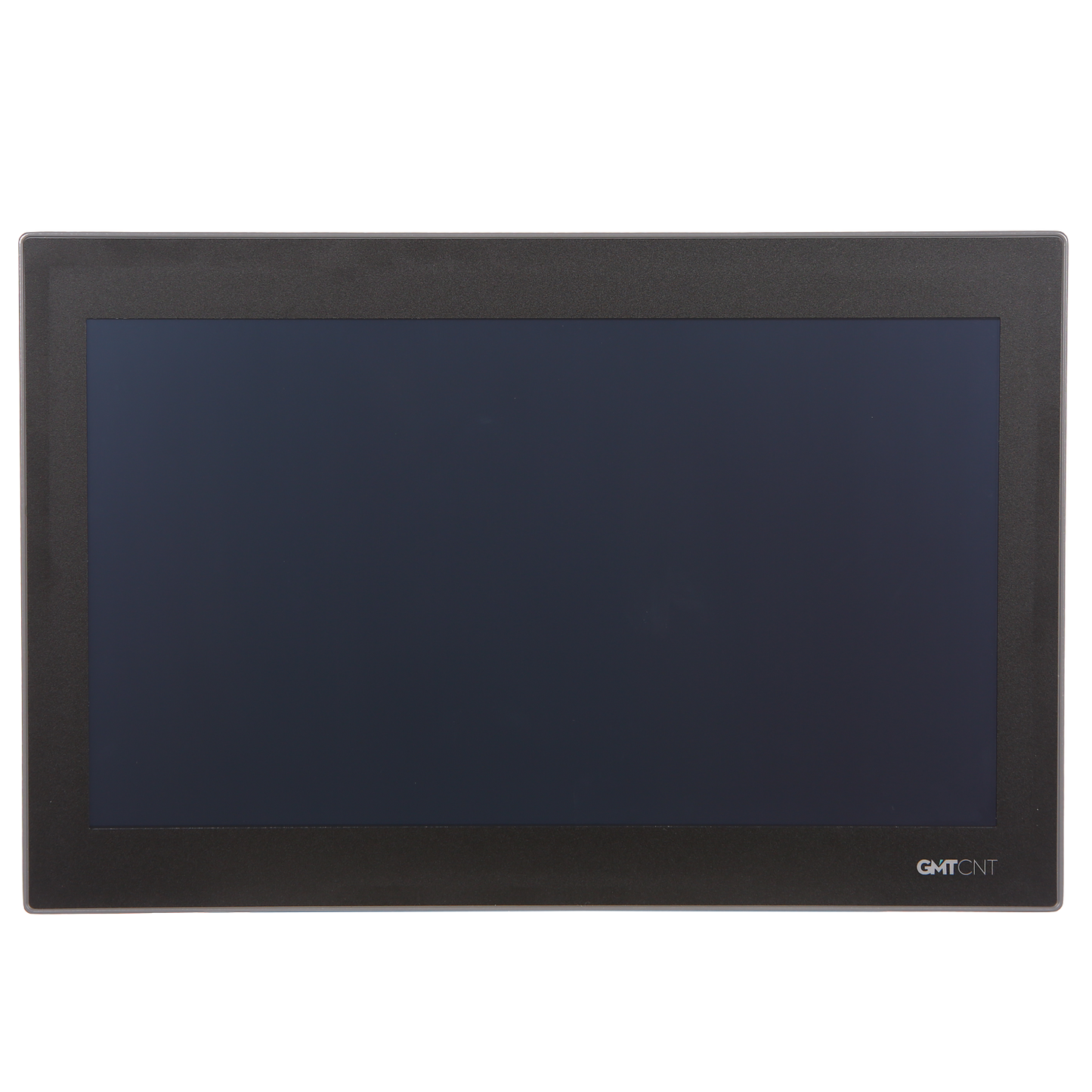

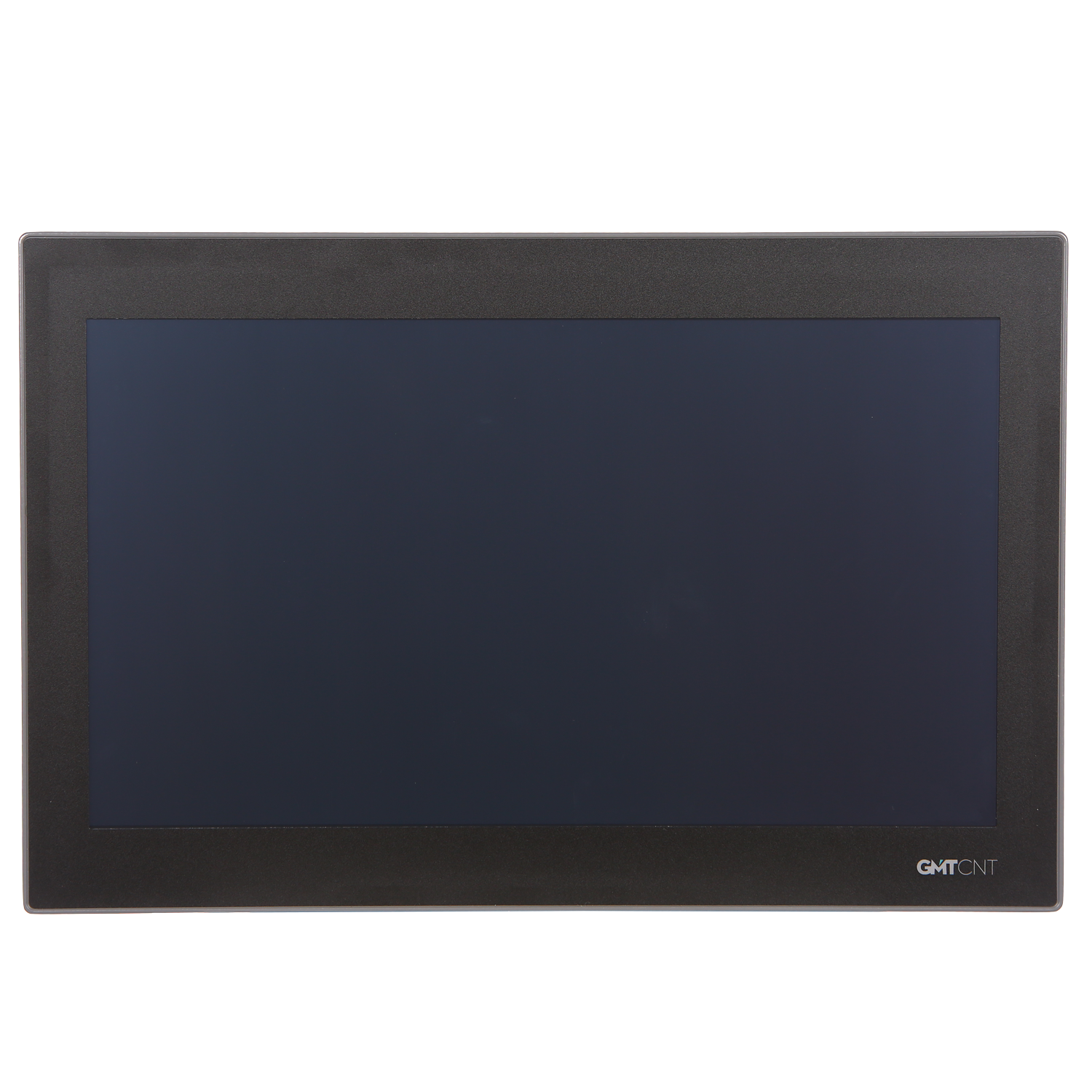

MSG-156E

• 16,77 M Colors
• 15.6 inch TFT Screen 1920*1080
• Quad-Core 1.8 GHz Processor
• 4 GB Flash Memory +512 MB Memory
• RTC (Real Time Clock)
• USB Slave port
• USB Host port
• RS232 and RS232/RS485 ports
• Remote monitoring and control via Tablet, Smartphone and PC with VNC support on Ethernet models
• Front panel IP65 protection
• GMTCNT protocol allows multiple HMIs to access a PLC with the communication feature between HMIs.
• Ability to connect keyboard, mouse, flash disk etc. to USB Host port
• Ability to record data, alarms, trends and perform historical queries with a flash disk plugged into the USB Host port
• Ability to create macros with C language
• Adding security levels and user definitions
• Access to HMI and externally connected USB flash disk via FTP in Ethernet models
