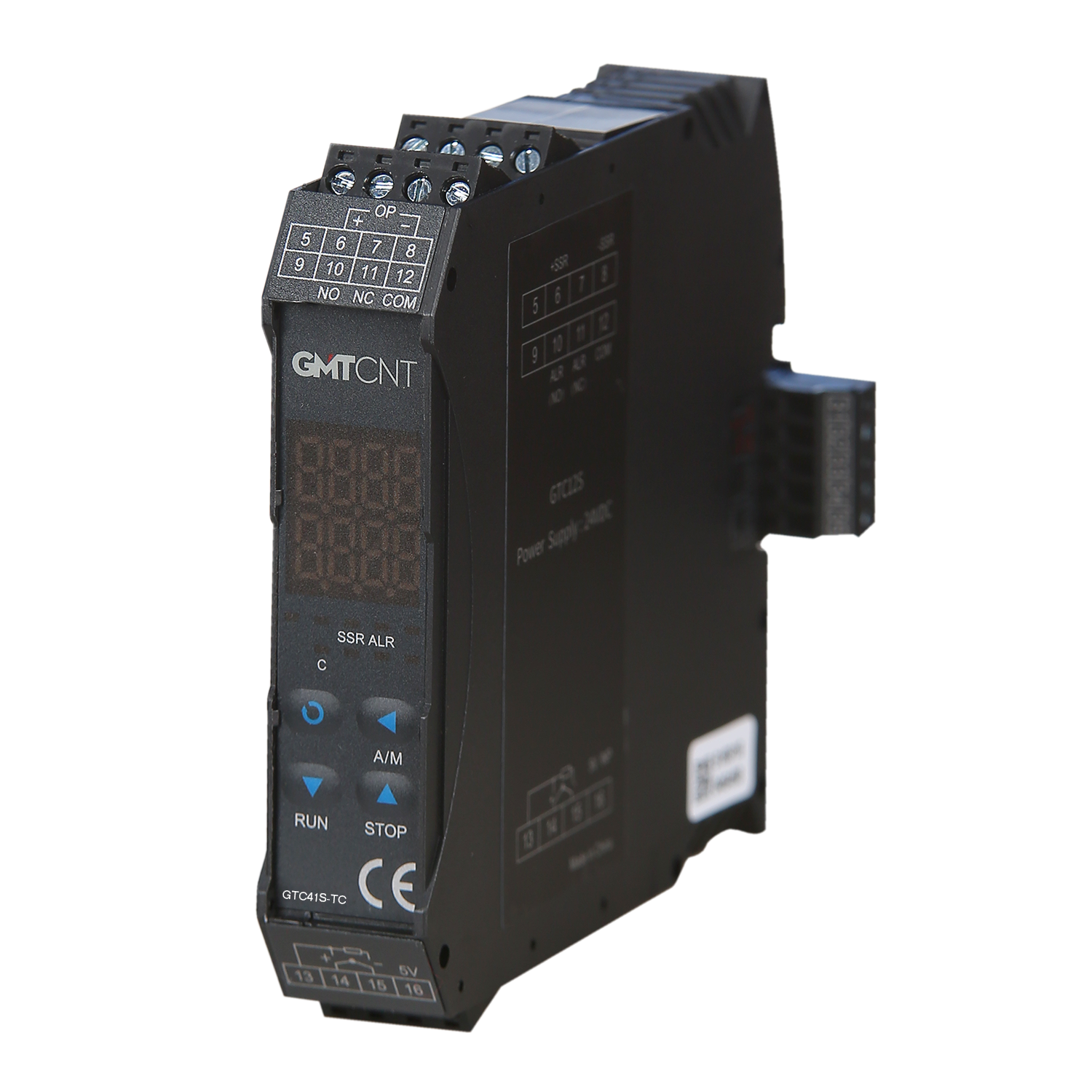

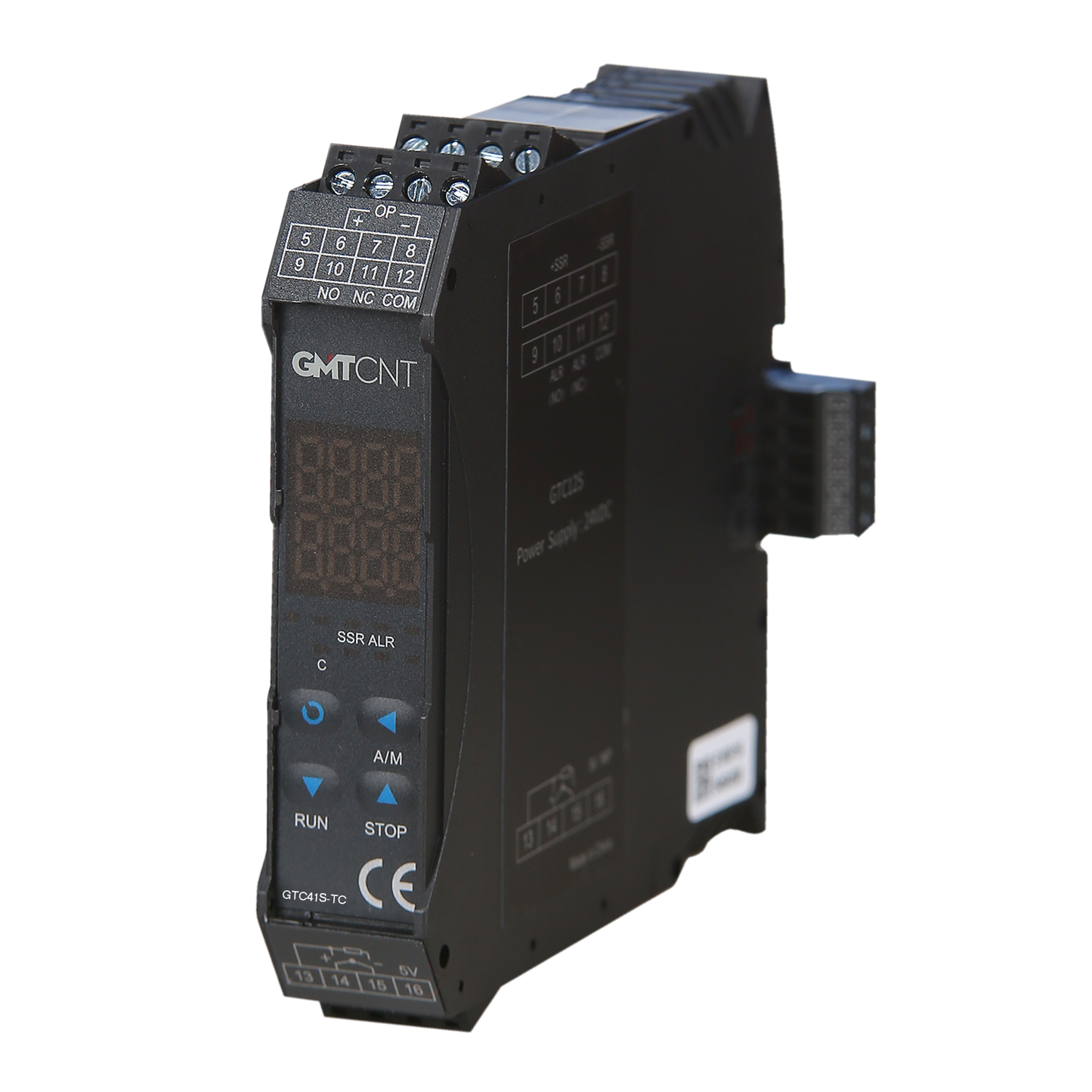

GTC41S-TC – 4 Channel Thermocouple Input, 4 Channel SSR Output, PID Controller
GTC41S-TC – 4 Channel Thermocouple Input, 4 Channel SSR Output, PID Controller
Regular price
£140.00 GBP
Regular price
Sale price
£140.00 GBP
Unit price
/
per
Taxes included.
• Digital calibration technology for input measurement
• 4 channel thermocouple input
• Auto tuning (AT) control
• DIN rail mounting
• User-friendly operation interface
• It can be easily adapted to your panels with 24VDC supply.
• Enhanced anti-jamming capability for operation in adverse industrial environment
Technical Specifications
- Power supply: 24VDC (-15%, +10%)
- Power consumption: ≤5W
- Supported sensor types: Thermocouple: J ,K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26
- Reading range: J(0~1000°C), K(-50~1300°C),S ve R (-50~1700°C),T(-200~+350°C),E(0~800°C),B(200~1800°C),N(0~1300°C)
- Measurement accuracy: 0.25%FS ±1 measured unit
- Control mode: On-Off control mode (dead band adjustable). Fuzzy logic PID control, automatic tuning with AI-PID (advanced artificial intelligence algorithm).
- Output features: Control Outputs: 4 SSR (12VDC), Alarm Output: 2 Relay (220VAC) outputs
- Alarm function: Upper limit, lower limit, deviation upper limit and deviation lower limit
- Electromagnetic compatibility (EMC): ±61000KV/4KHz according to IEC4-4-5; 61000KV according to IEC4-5-4.
- Insulation withstand voltage: ≥600V between terminals.
- Working conditions: Temperature -10~60°C, Humidity ≤90%RH
- Communication: Modbus RTU: RS485 9600,8,None,1
- Mounting instructions: DIN RAIL Mounting
