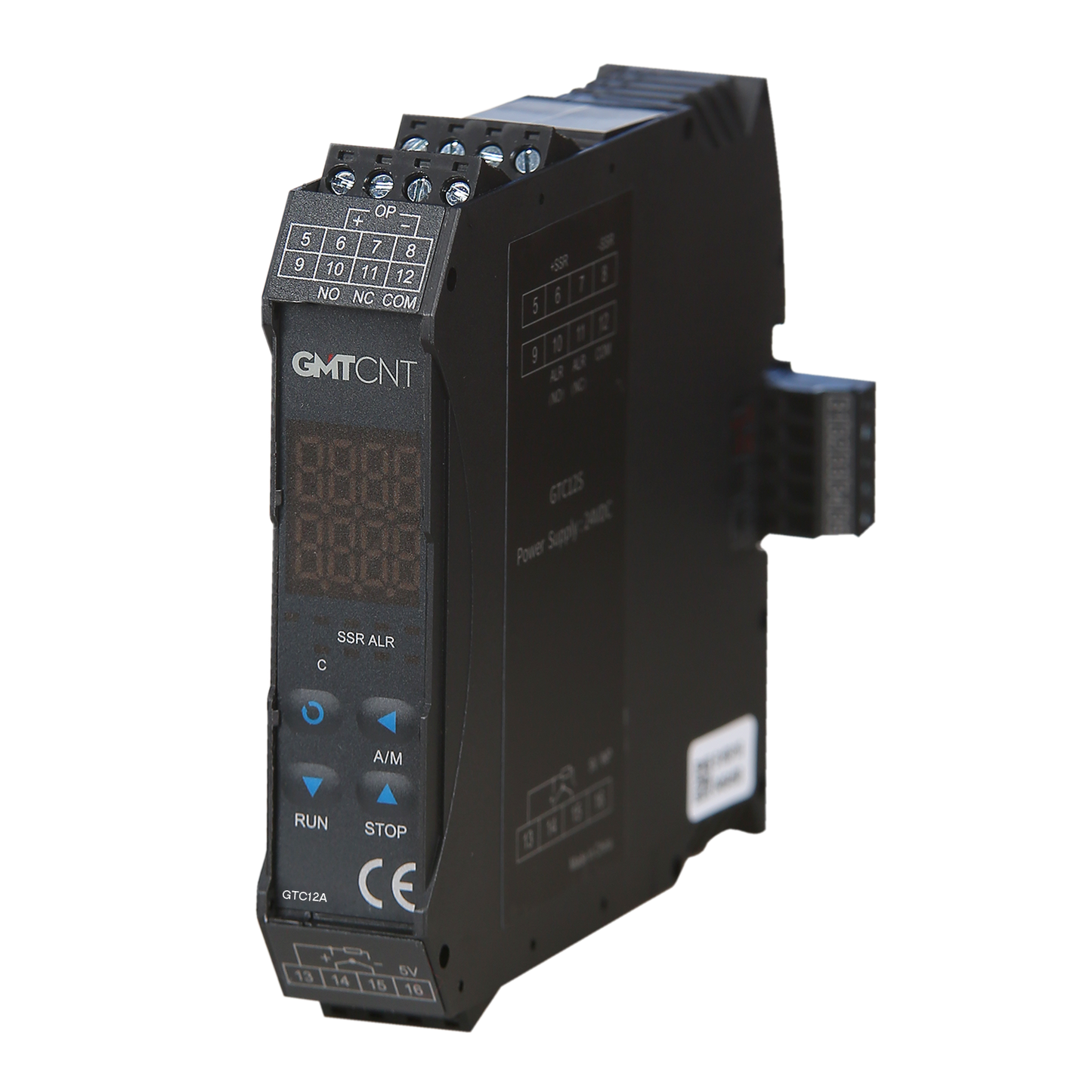

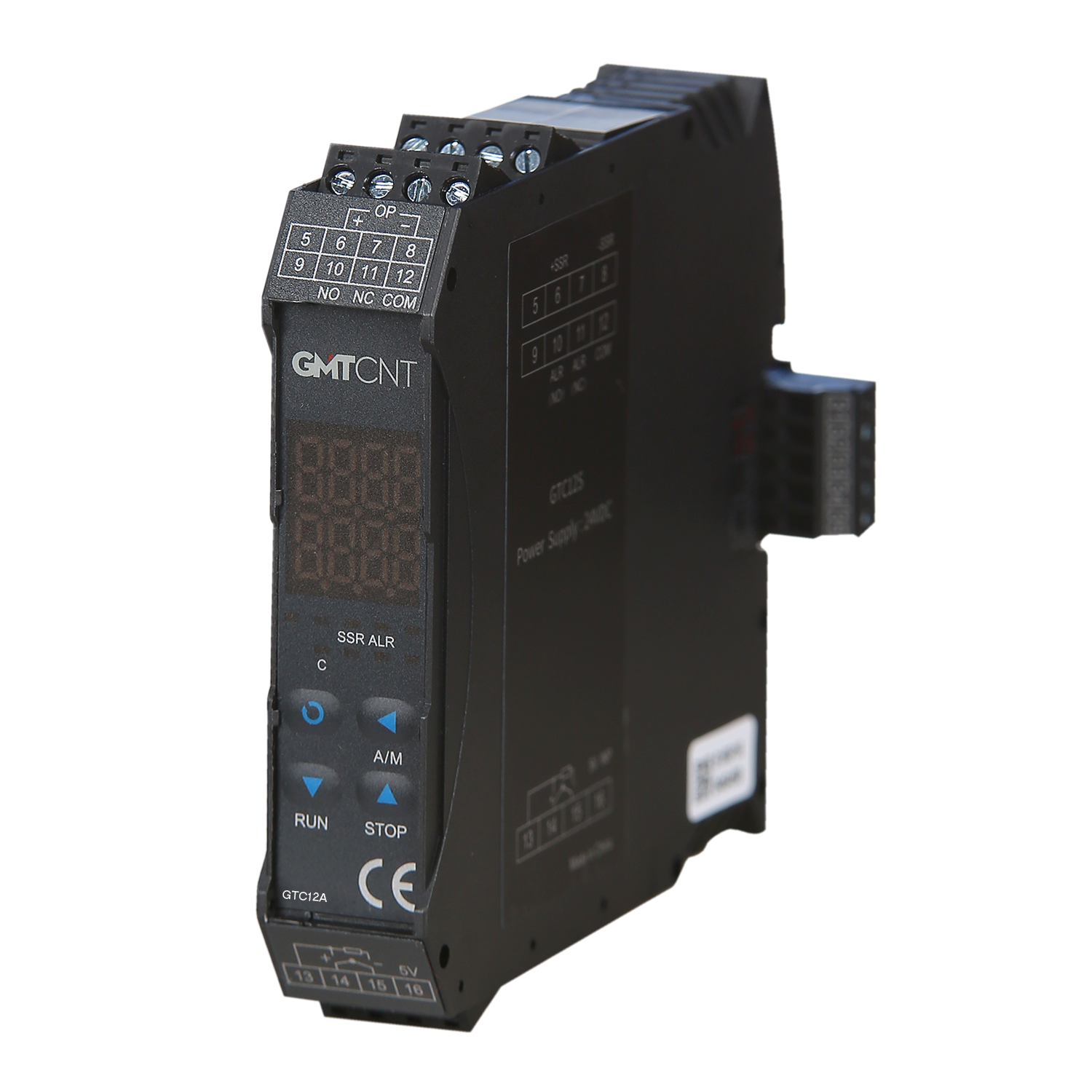

GTC12A – Universal Input, Analog Output, PID Controller
GTC12A – Universal Input, Analog Output, PID Controller
Regular price
£90.00 GBP
Regular price
Sale price
£90.00 GBP
Unit price
/
per
Taxes included.
• Digital calibration technology for input measurement.
• Various thermocouple, RTC, DC volt, DC current
• Auto tuning (AT) control.
• Provides flexibility and ease of installation.
• User-friendly working interface.
• You can easily adapt it to your panels with 24VDC supply.
• Enhanced anti-interference ability for operation in adverse industrial environments.
Technical Specifications
- Power supply: 24VDC (-15%, +10%)
- Power consumption: ≤5W
- Supported sensor types: Analog: 4-20mA/0-20mA Thermocouple: J,K, S, R, E, T, B, N, WRe3-WRe25, WRe5-WRe26,Cu50, Pt100
- DC Voltage: 0~5V, 1~5V, 0~1V, 0~100mV, 0~20mV, 0~500mV etc.
- DC Current: 4~20mA (external 250Ω shunt resistor is mounted on the sensor input channel of the device)
- Reading range: J(0~1000°C), K(-50~1300°C),S ve R (-50~1700°C),T(-200~+350°C),E(0~800°C),B(200~1800°C),N(0~1300°C),Cu50(-50~+150°C), Pt100(-200~+600°C)
- Measurement accuracy: 0.25%FS ±1 measured unit
- Control mode: On-Off control mode (dead band adjustable). Fuzzy logic PID control, automatic tuning with AI-PID (advanced artificial intelligence algorithm).
- Output specifications: 4-20mA, 0-20mA
- Alarm function: Upper limit, lower limit, deviation upper limit and deviation lower limit
- Electromagnetic compatibility (EMC): ±61000KV/4KHz according to IEC4-4-5; 61000KV according to IEC4-5-4.
- Insulation withstand voltage: ≥600V between terminals.
- Working conditions: Temperature -10~60°C, Humidity ≤90%RH
- Communication: Modbus RTU: RS485 9600,8,None,1
- Mounting instructions: DIN RAIL Mounting
