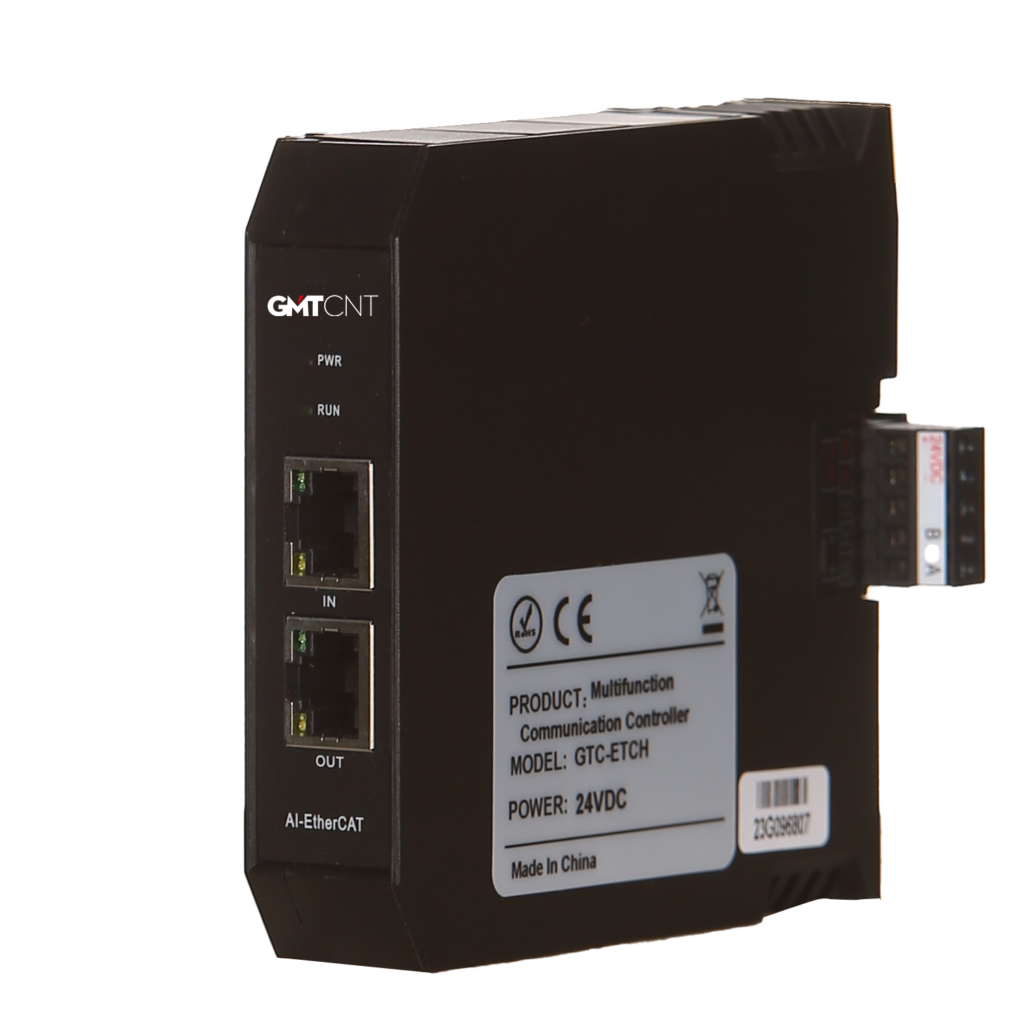

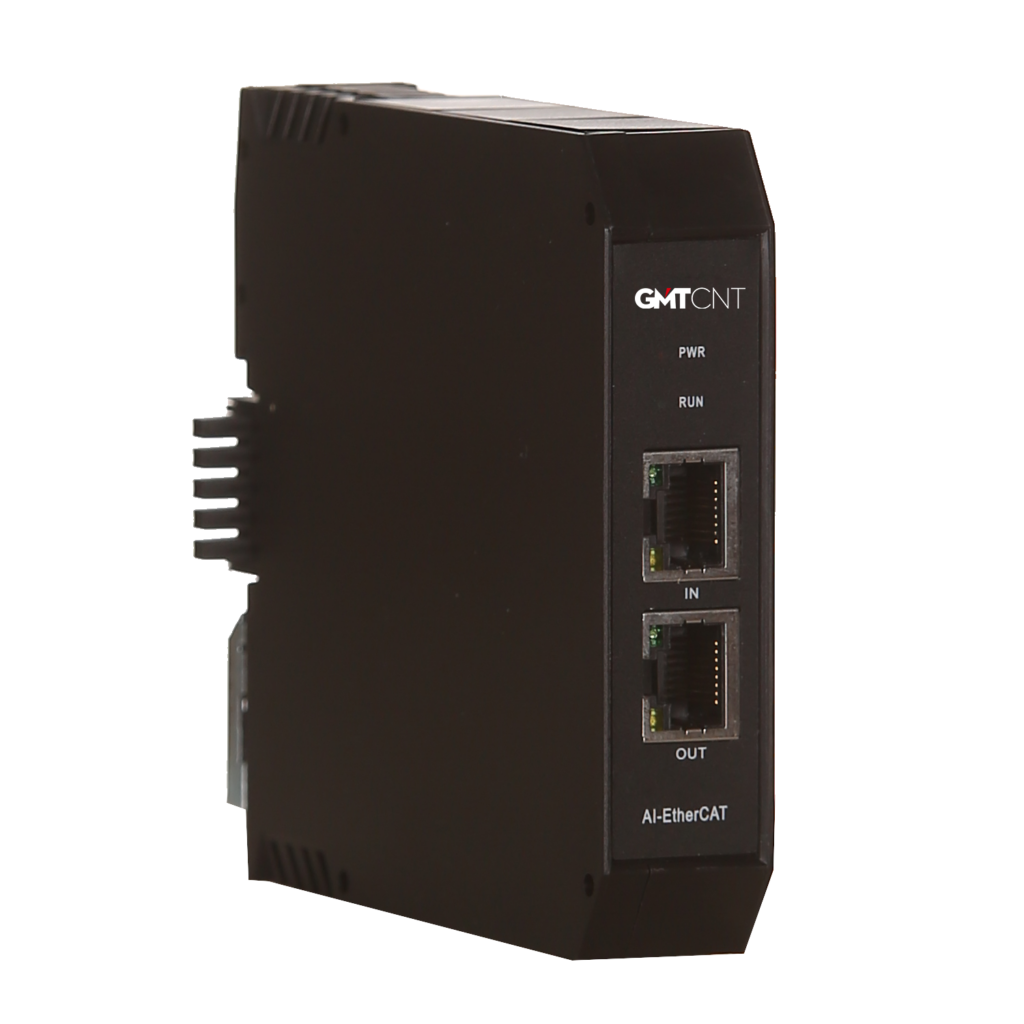

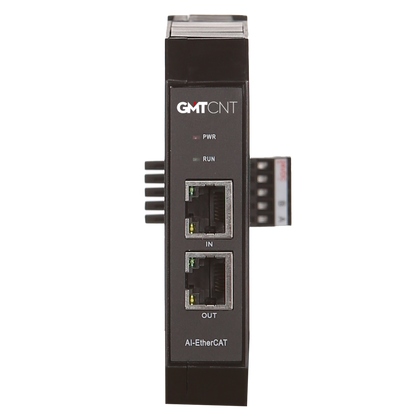

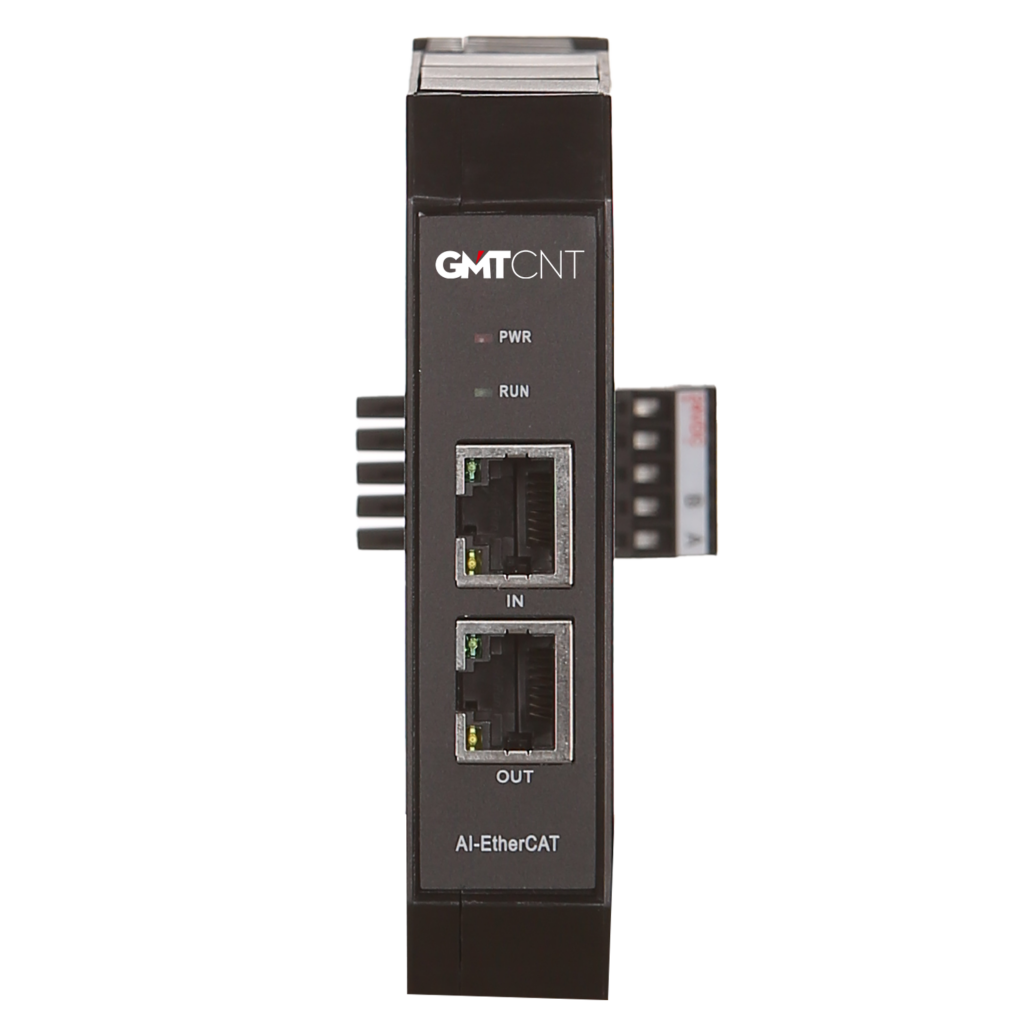

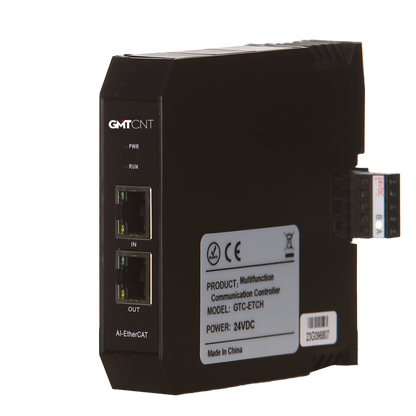

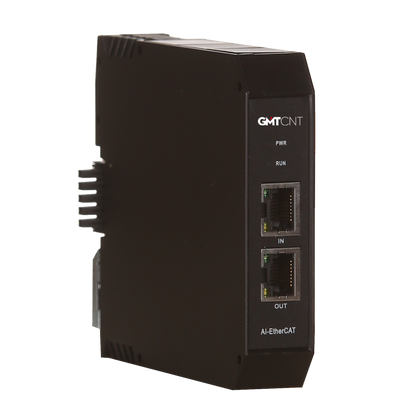

GTC-ETCH – 8 Channel EtherCAT Module
GTC-ETCH – 8 Channel EtherCAT Module
Regular price
£145.00 GBP
Regular price
Sale price
£145.00 GBP
Unit price
/
per
Taxes included.
• Digital calibration technology for input measurement
• Various thermocouple and RTD support
• Auto tuning (AT) control
• DIN rail mounting
• User-friendly operation interface
• It can be easily adapted to your panels with 24VDC supply.
• Enhanced anti-jamming capability for operation in adverse industrial environments
Technical Specifications
- Supply: 24VDC, -15%, +10%.
- Power Consumption: ≤5W
- Supported Sensor Types: Thermocouple: K, S, R, E, J, T, B, N, WRe3-WRe25, WRe5-WRe26,Cu50, Pt100
- DC Voltage: 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV etc.
- DC Current: 4 ~ 20mA (with 250 ohm shunt resistor)
- Okuma Aralığı : K(-50~1300°C),S ve R (-50~1700°C),T(-200~+350°C),E(0~800°C),J(0~1000°C),B(200~1800°C),N(0~1300°C),Cu50(-50~+150°C), Pt100(-200~+600°C)
- Measurement Accuracy: 0.25%FS ±1 measured unit
- Control Period: 0.24~300.0 seconds can be selected and this value should be in integers of 0,5 seconds.
- Control Mode: On-Off control mode (dead band adjustable). Fuzzy logic PID control, automatic tuning with AI-PID (advanced artificial intelligence algorithm).
- Output Features: SSR Output: 12VDC/30mA (for driving SSR)
- Sampling Period: It can take 8 samples per second. By setting the digital filter parameter FILt=0, the response time can be set to 0.5 seconds.
- Function: Upper limit, lower limit, deviation upper limit, deviation lower limit.
- Electromagnetic Compatibility (EMC): ±61000KV/4KHz according to IEC4-4-5; 61000KV according to IEC4-5-4.
- Insulation Withstand Voltage: ≥600V between terminals.
- Working Conditions: Temperature -10~60°C, Humidity ≤90%RH
- Communication: Modbus RTU (RS485) 9600, 8, None, 1
