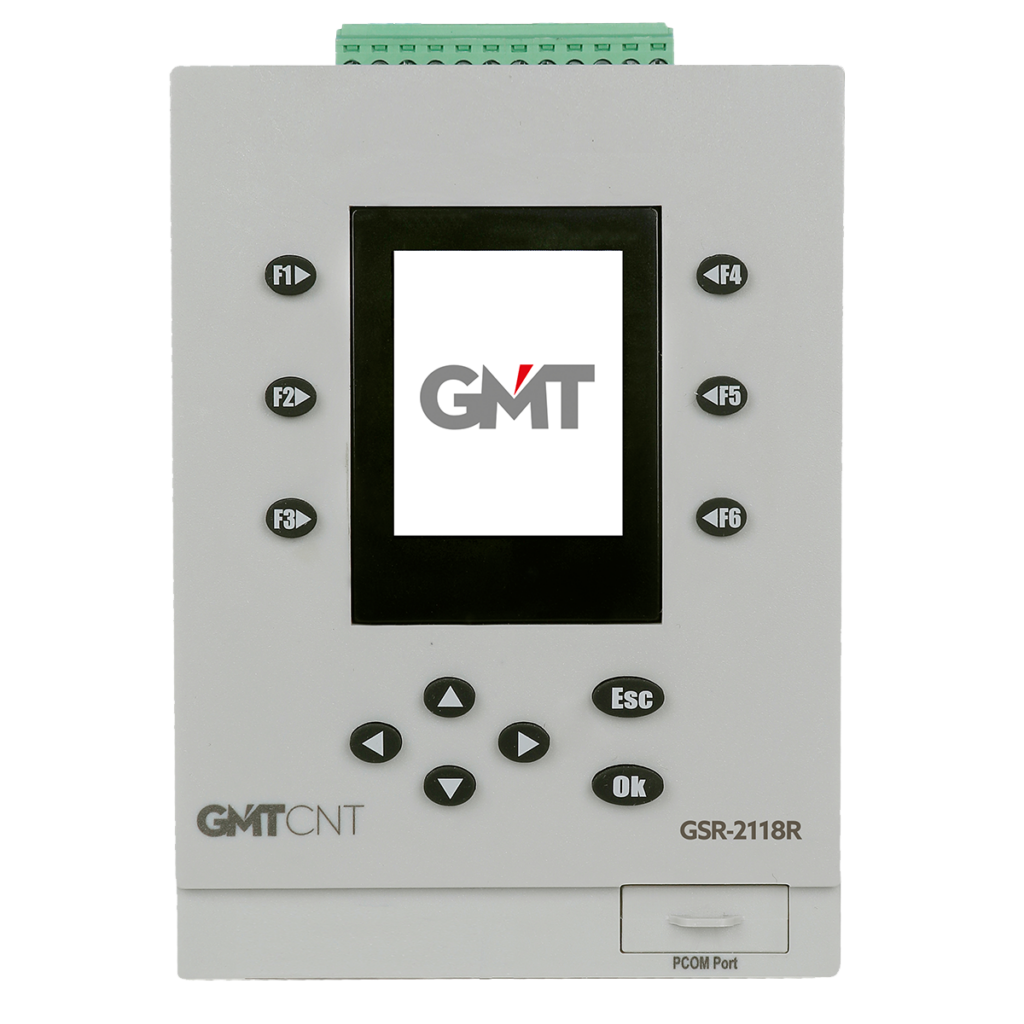

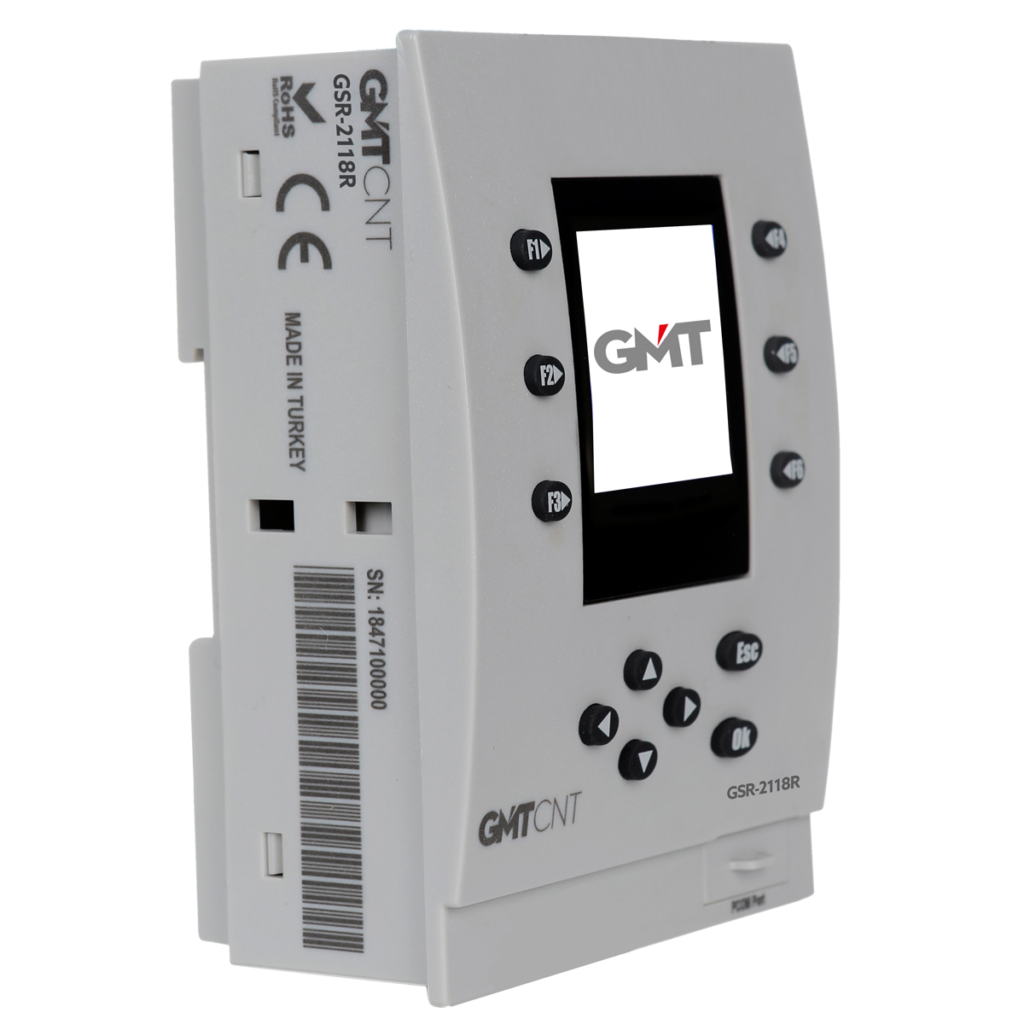

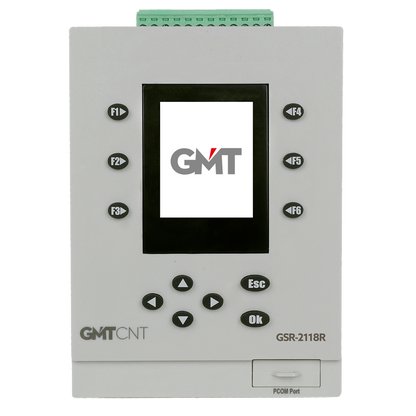

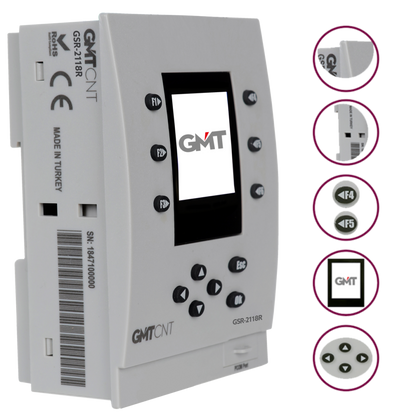

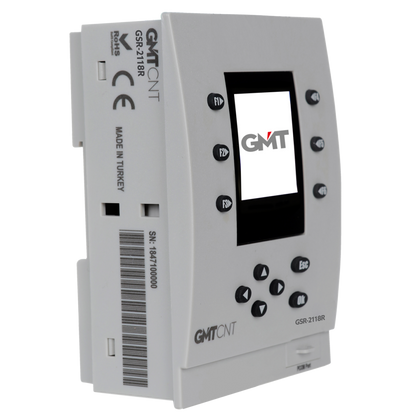

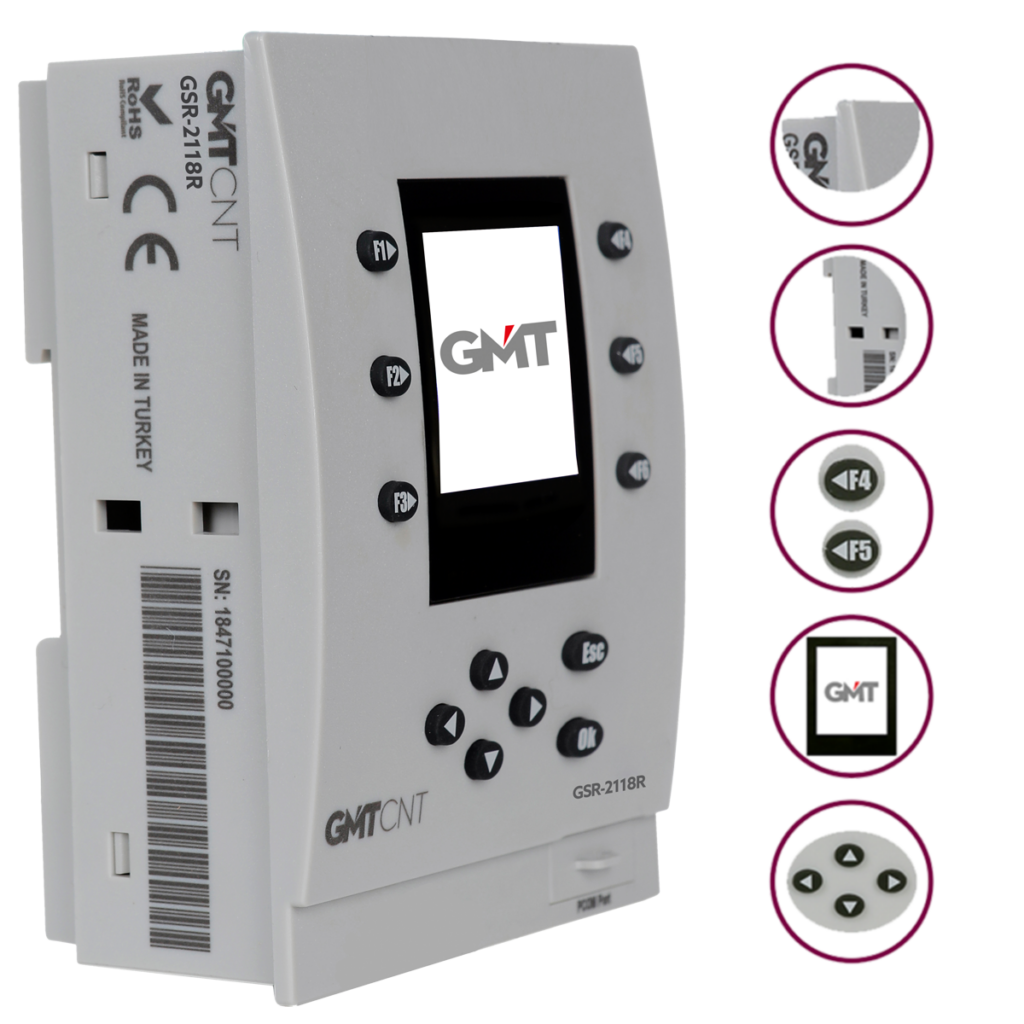

GMTCNT GSR-2118R Mini PLC Controller with TFT Display and Relay Outputs

The GMTCNT GSR-2118R is a compact programmable logic controller (PLC) with integrated TFT LCD display designed for industrial automation and machine control systems. Featuring configurable digital and analog inputs, relay outputs, RTC functionality, and DIN rail mounting, this PLC provides reliable control for a wide range of automation applications.

• 24VDC supply
• 1,8″ color TFT LCD Display
• 11 channels 24V DC PNP digital or 0…10V DC (12 Bit) Analog configurable input
• 8 channel 230V AC 5A relay output
• 196kB program memory space
• Program download via USB (with GSR-COM1)
• Program loading with USB flash disk (with GSR-COM2 apparatus)
• Decimal operation support
• Maximum program loop rate of 20kHz
• RTC (Real Time Clock) real time clock
• 2kHz Fast Counter Input (All Inputs)
• 6 programmable function keys
• DIN RAIL and Panel mounting
• Ability to program with GMSuite editor software
