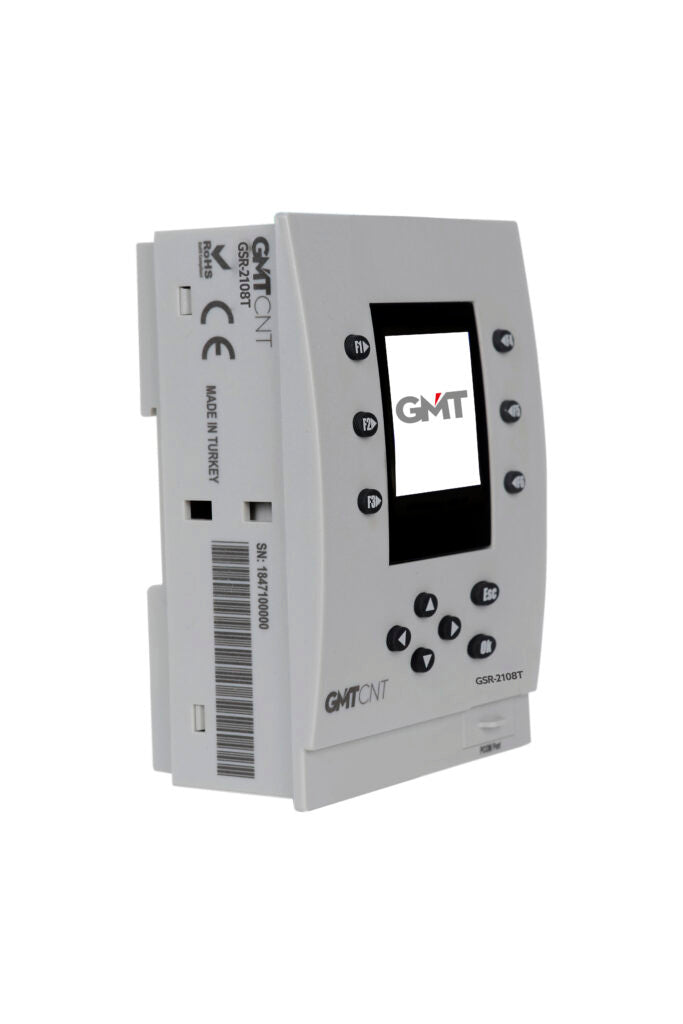

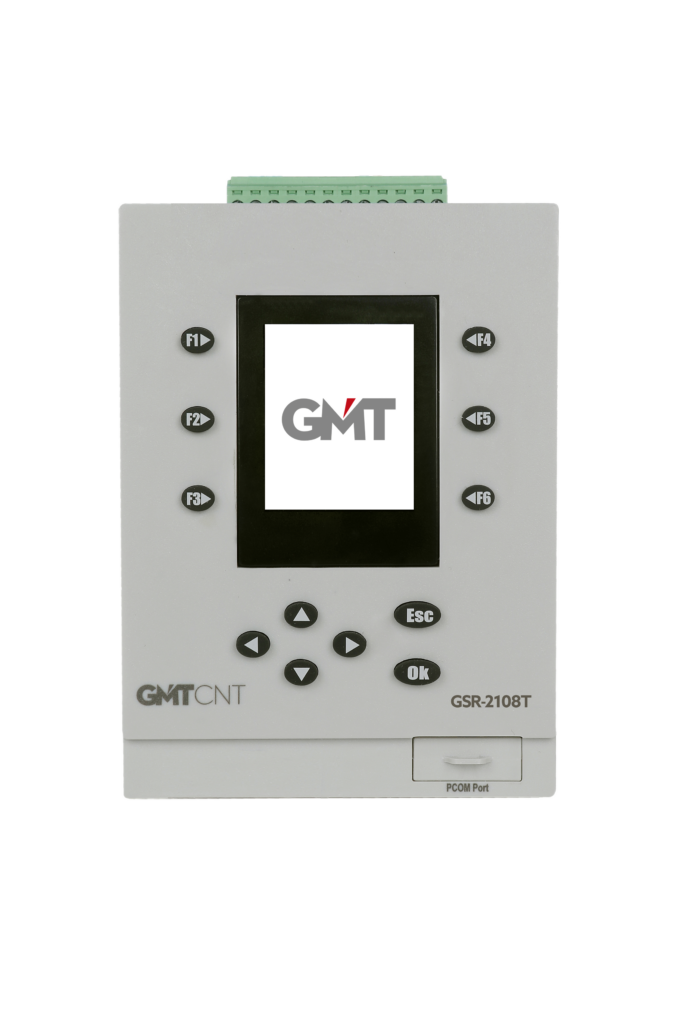

GSR-2108T

• 24 VDC Supply
• 10 Channel Digital (PNP) / Analog Input (0-10V) (12 bit resolution)
• 8 transistor outputs (0.5A @ 24VDC)
• Decimal operation support
• 196 kB program / 10 kB variable memory
• Maximum 20kHz program loop rate
• Program upload via USB (with GSR-COM1 apparatus)
• Program installation via USB flash disk (with GSR-COM2 apparatus
• RTC (Real Time Clock) real time clock
• 2kHz Fast Counter Input (All Inputs)
• Possibility of connecting 1 double-phase (A, B, Z) encoder or
1 fast counter input (10 kHz)
• 1 Channel 10 kHz Pulse Output
• 6 programmable function keys
• DIN rail mounting and panel mounting
• Programming with GMTSuite editor software
