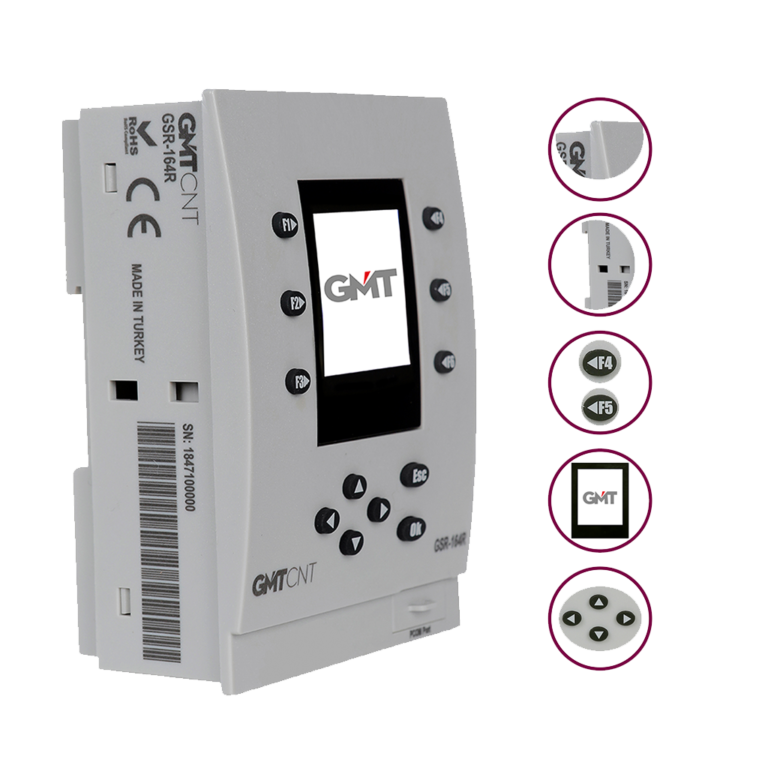

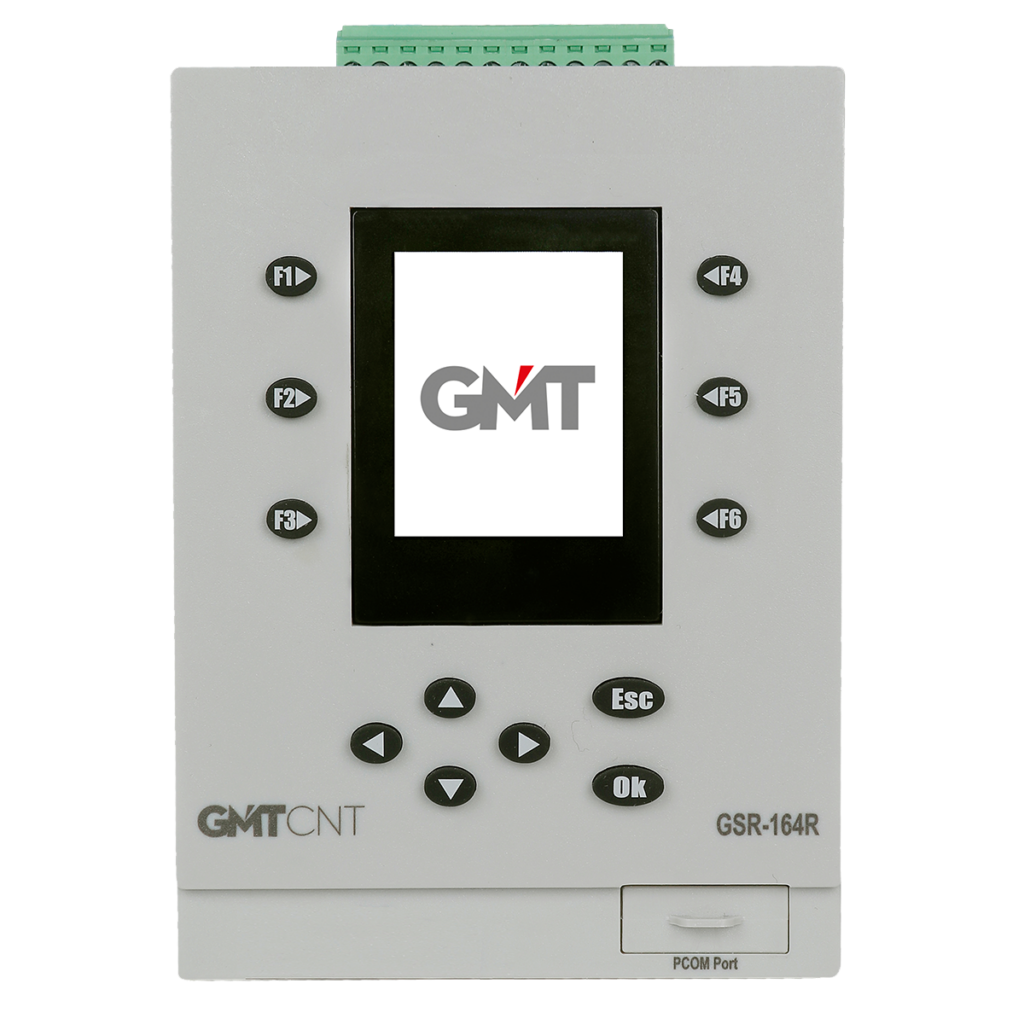

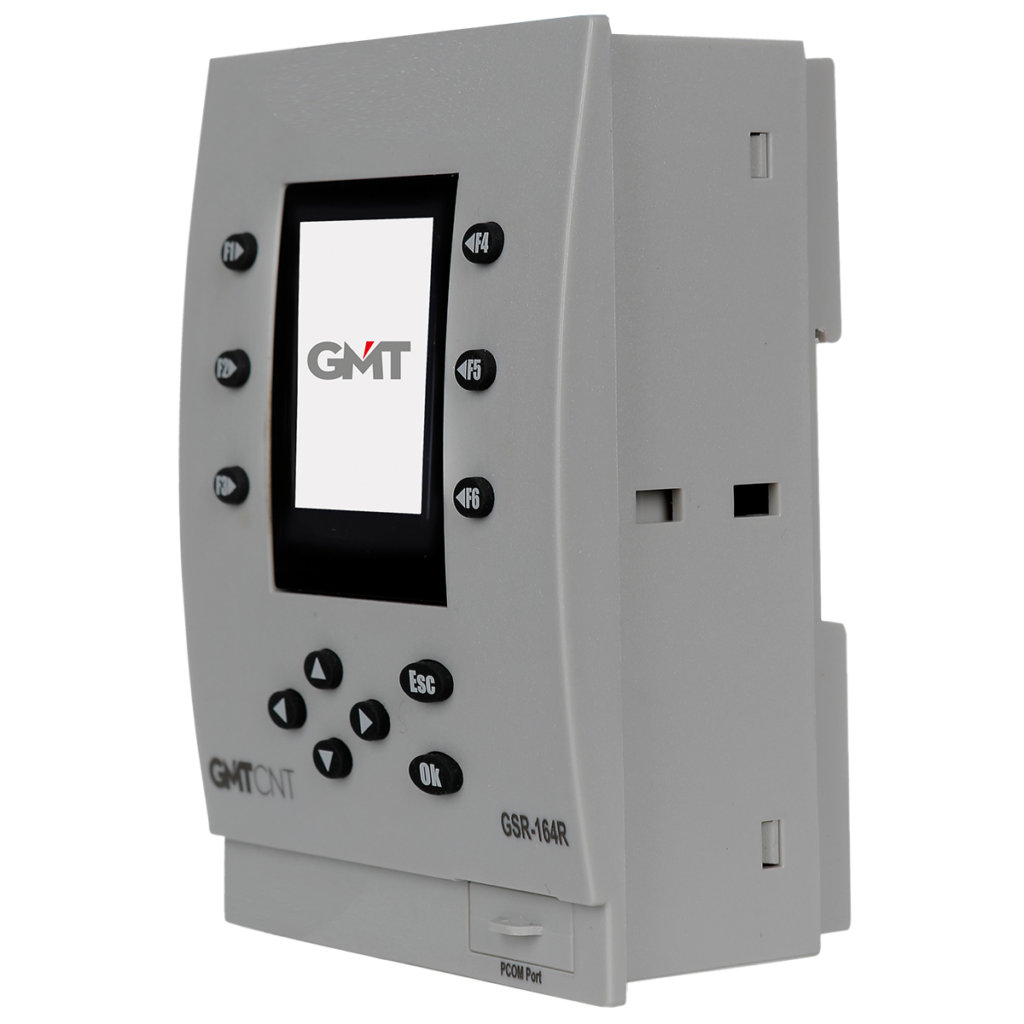

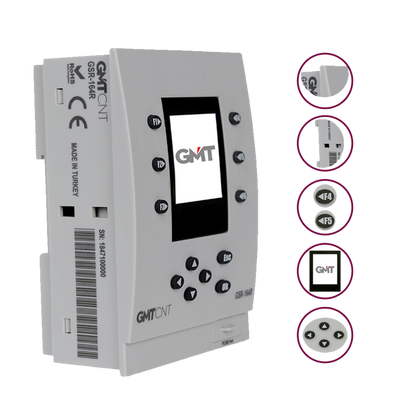

GMTCNT GSR-164R Mini PLC Controller with TFT LCD and Relay Outputs

The GMTCNT GSR-164R is a compact programmable logic controller (PLC) with integrated TFT LCD display designed for industrial automation and machine control applications. Featuring configurable digital and analog inputs, relay outputs, RTC functionality, and DIN rail mounting, this compact PLC provides reliable control for industrial systems and automation panels.

• 24VDC supply
• 1,8″ color TFT LCD Display
• 6 channels 24V DC PNP digital or 0…10V DC (12 Bit) Analog configurable input
• 4 channel 230V AC 5A relay output
• 48kB program memory space
• Program download via USB (with GSR-COM1)
• Program loading with USB flash disk (with GSR-COM2 apparatus)
• Decimal operation support
• Maximum program loop rate of 20kHz
• RTC (Real Time Clock) real time clock
• 2kHz Fast Counter Input (All Inputs)
• 6 programmable function keys
• DIN RAIL and Panel mounting
• Ability to program with GMSuite editor software
