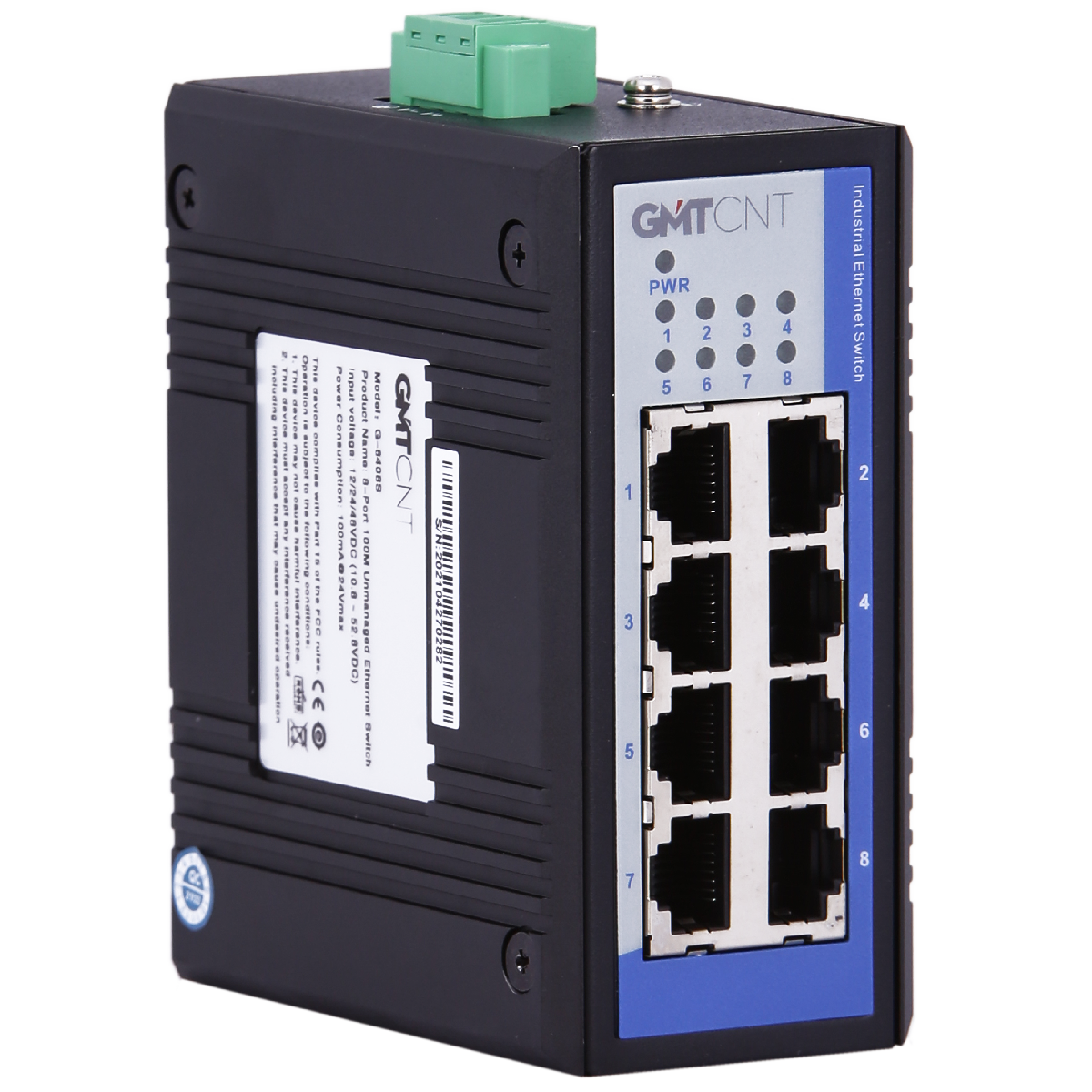

G-6408S Industrial 8 Port Ethernet Switch – DIN Rail Network Switch

The G-6408S industrial Ethernet switch provides reliable network communication for PLC systems, industrial automation panels, SCADA systems, and factory networks. Designed with DIN rail mounting, rugged metal housing, and industrial EMC protection, this unmanaged Ethernet switch is ideal for harsh industrial environments.

• RJ-45 ports: 8x 10/100Base-TX ports, auto detection, auto
• MDI / MDI-X
• IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• 100 meters communication distance
• 12-48VDC supply
• metal body
• DIN rail mounting

EMI

• FCC Part 15 Subpart B classA EN55022 class A

EMS

• IEC(EN)61000-4-2(ESD)
• IEC(EN)61000-4-3(RS)
• IEC(EN)61000-4-4(EFT)
• IEC(EN)61000-4-5(Surge)
• IEC(EN)61000-4-6(CS)
• IEC(EN)61000-4-8
• IEC 60068-2-27(Shock)
• IEC 60068-2-32(Freefall)
• IEC 60068-2-6(Vibration)
• CE approved
