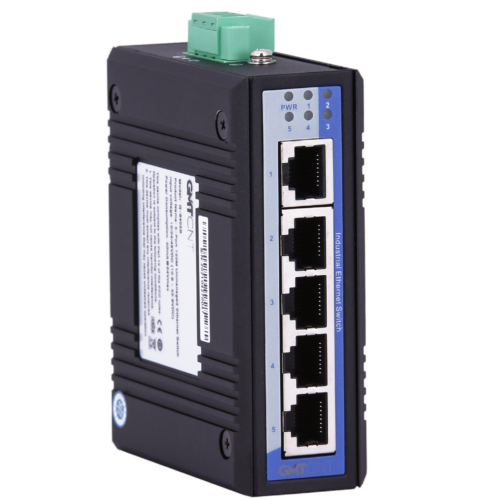

G-6405S Industrial 5 Port Ethernet Switch – DIN Rail Ethernet Switch

The G-6405S industrial Ethernet switch is designed for reliable industrial communication in PLC systems, automation panels, SCADA applications, and factory networks. With DIN rail mounting, rugged metal housing, and industrial EMC protection, this unmanaged Ethernet switch provides stable network performance in harsh environments.

• RJ-45 ports: 5x 10/100Base-TX ports, auto detection, auto
• MDI / MDI-X
• IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• 100 meters communication distance
• 12-48VDC supply
• metal body
• DIN rail mounting

EMI

• FCC Part 15 Subpart B classA EN55022 class A

EMS

• IEC(EN)61000-4-2(ESD)
• IEC(EN)61000-4-3(RS)
• IEC(EN)61000-4-4(EFT)
• IEC(EN)61000-4-5(Surge)
• IEC(EN)61000-4-6(CS)
• IEC(EN)61000-4-8
• IEC 60068-2-27(Shock)
• IEC 60068-2-32(Freefall)
• IEC 60068-2-6(Vibration)
• CE approved
