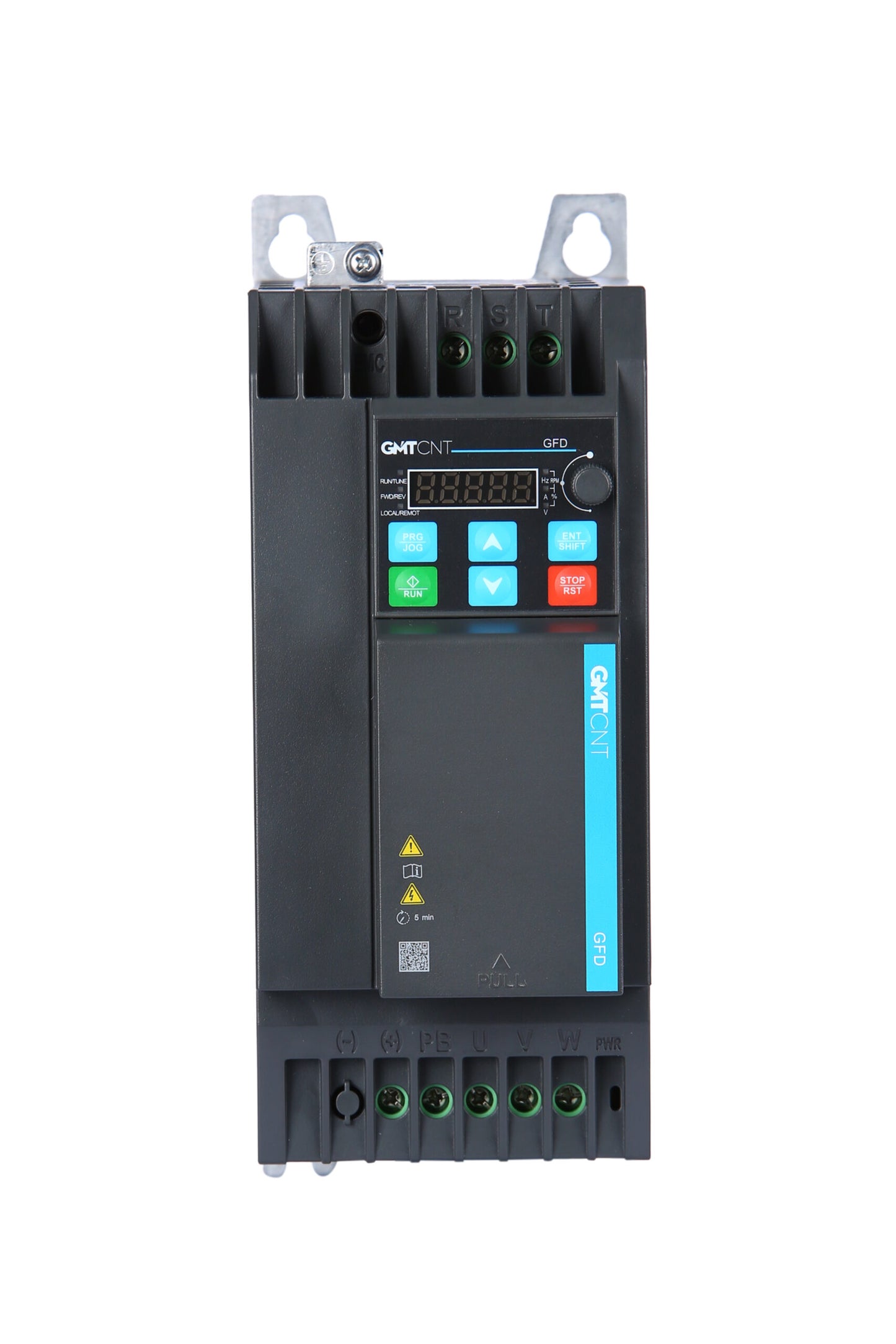

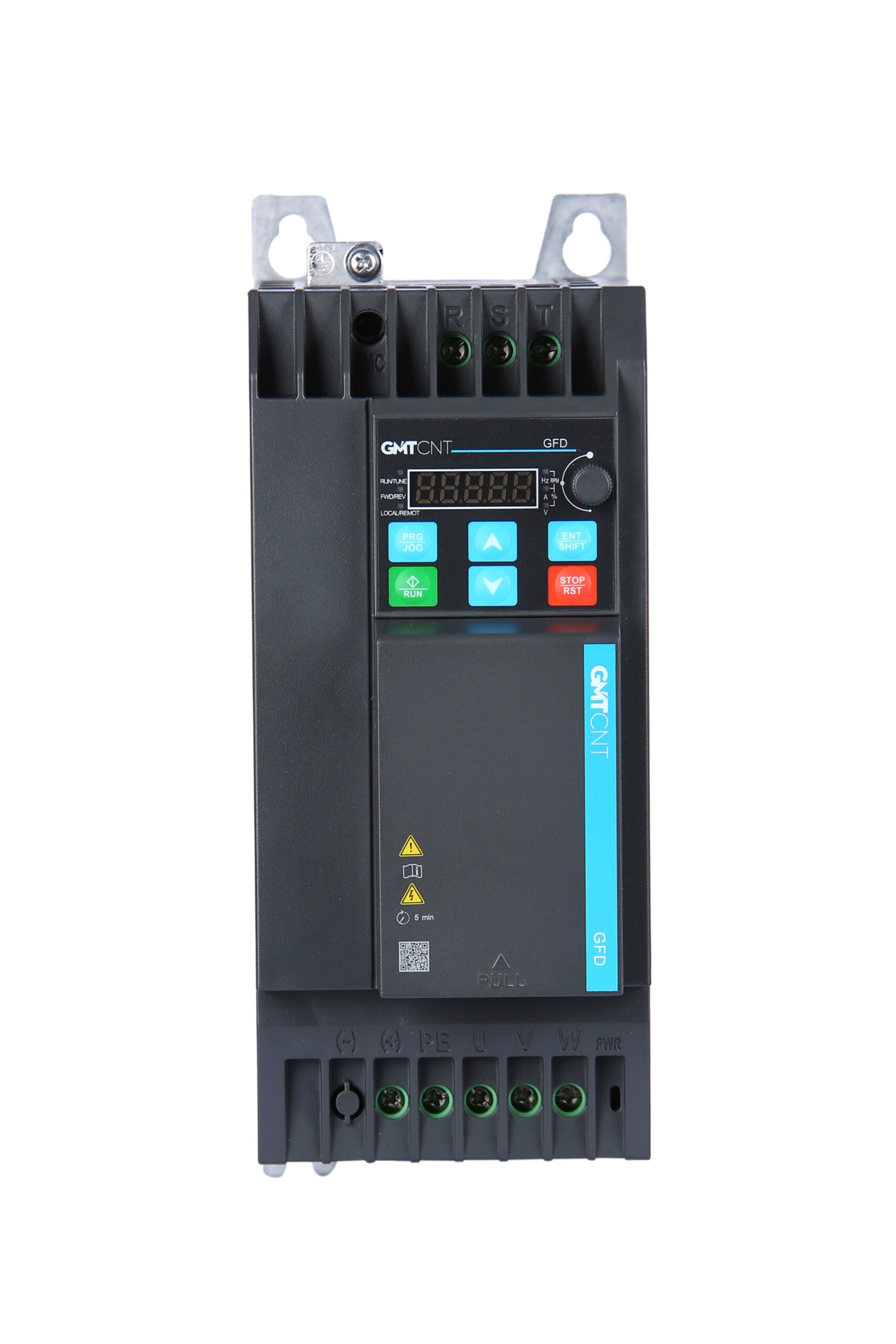

380V-480V, 3PH, GMTCNT GFD, 7.5kW, VFD

380V-480V, 3PH, GMTCNT GFD, 7.5kW, VFD

£704.00 GBP
£704.00 GBP
Sale Sold out
Taxes included.
  • AC 3 Phase 380V–480V
  • V/F and Sensorless Vector Control (SVC)
  • Ability to drive IM and PM engines
  • Overload capacity 150%/60s, 180/10s
  • Built-in brake unit
  • Internal ModBus RS485 communication
  • Multi-step speed and simple PLC function
  • Autotune Feature
  • C3 Class EMC filter
  • STO function (Optional)
  • One-click parameter copying and loading with external panel
  • Innovative independent air duct design and standard coated circuit board,
    Protects VFD by preventing dust and oil influs
  • Full protection of electronic components on PCB, longer product
    provides life and reliability
  • Possibility of side-by-side mounting
  • Spring control terminals for fast and tool-free wiring
  • 2 Channel Analog Input AI1: 0...10V/0...20mA; AI2: 0...10V
  • 1 Channel Analog Output AO1: 0...10V/0...20mA
  • 4 Channel Digital Input
  • 2 Channel Relay Output
